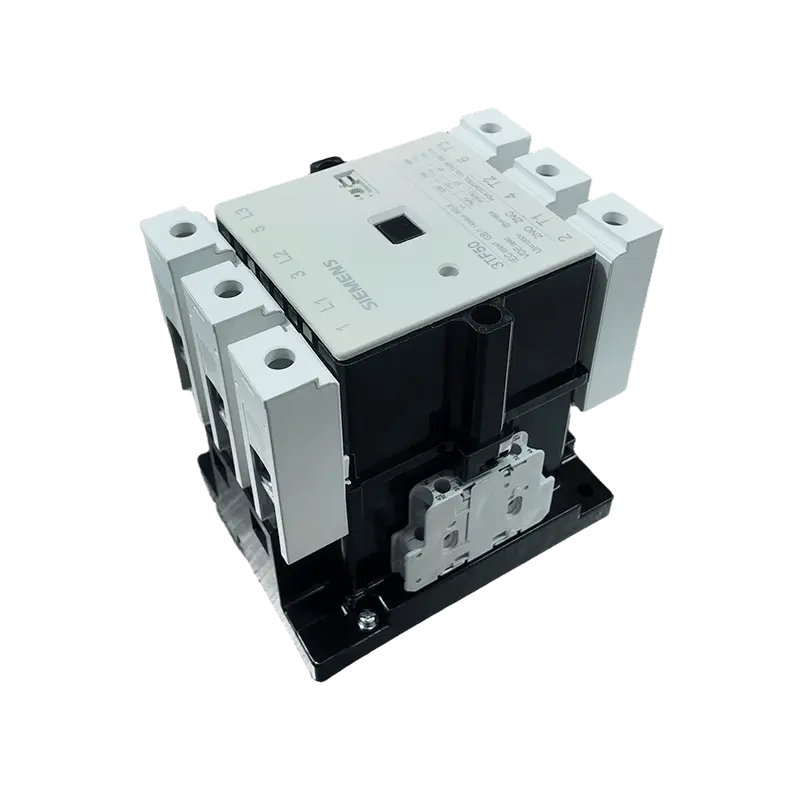

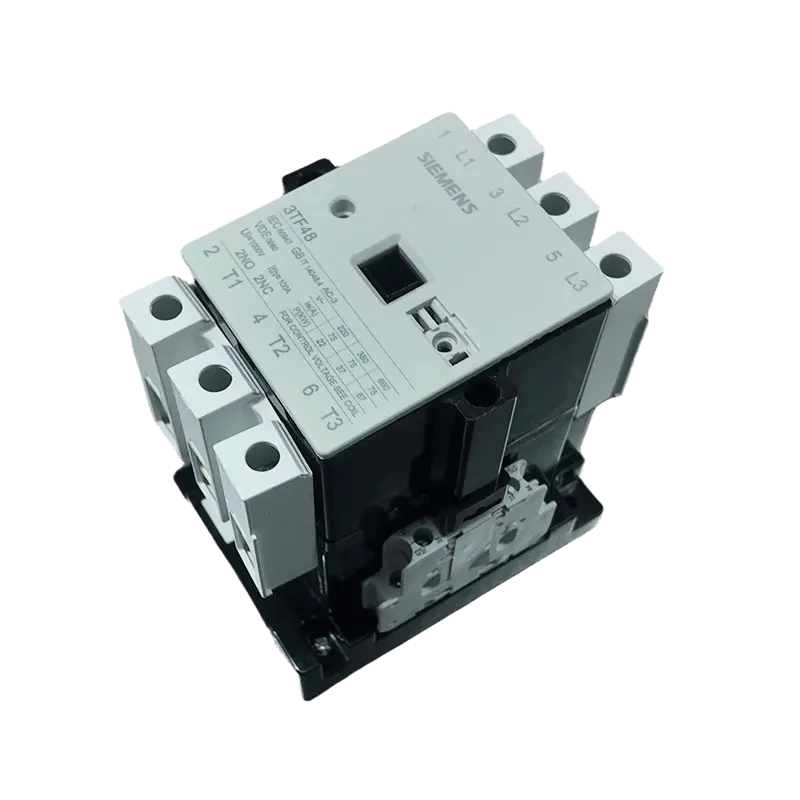

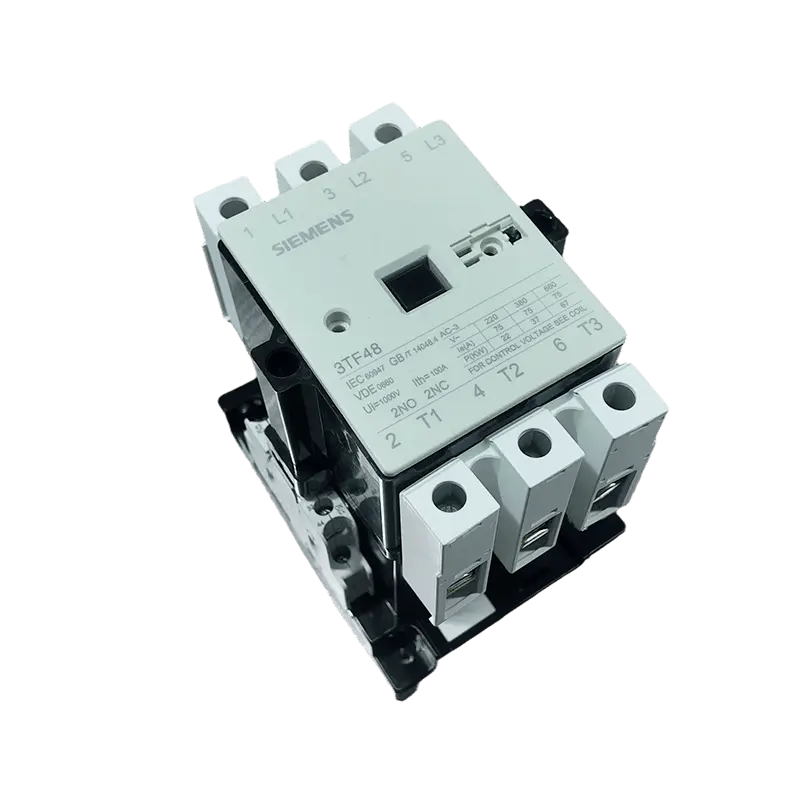

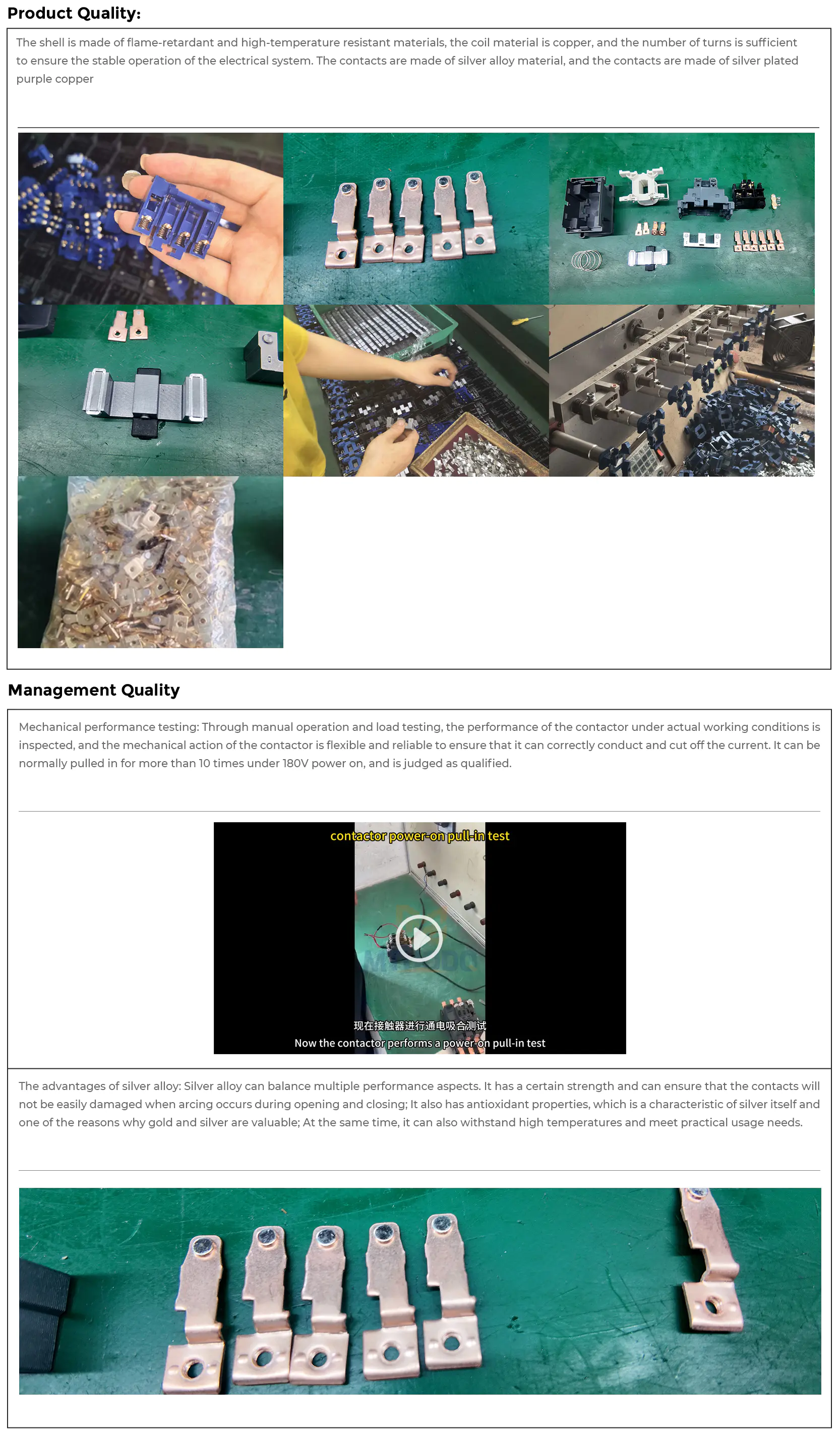

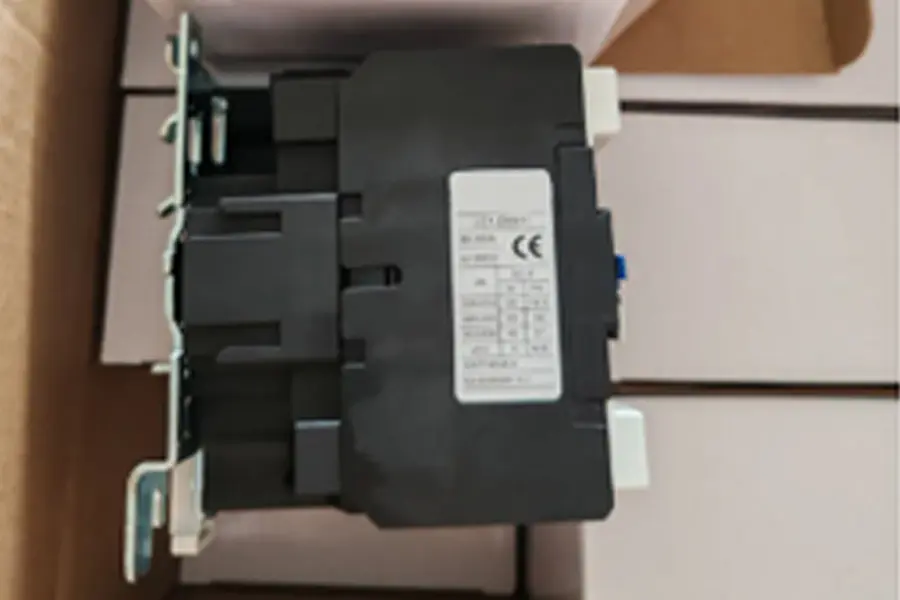

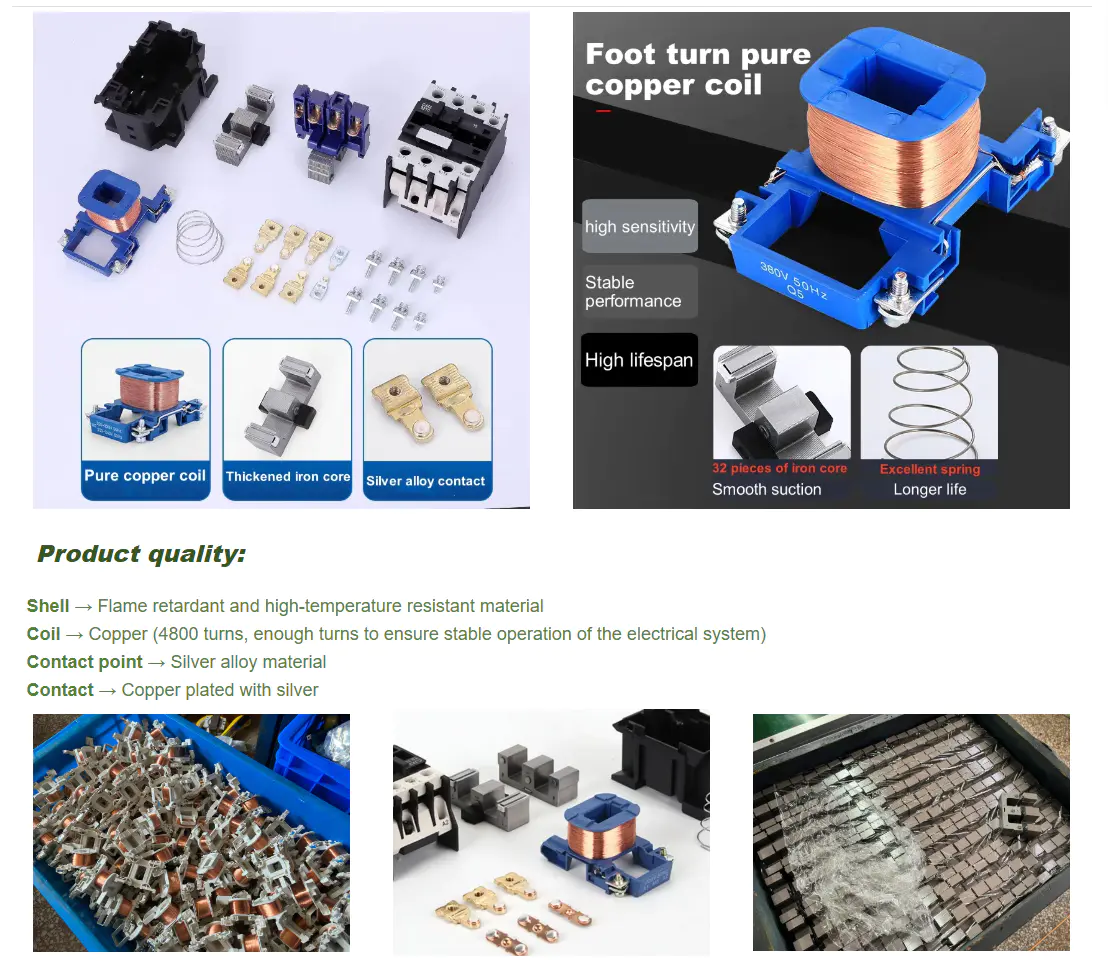

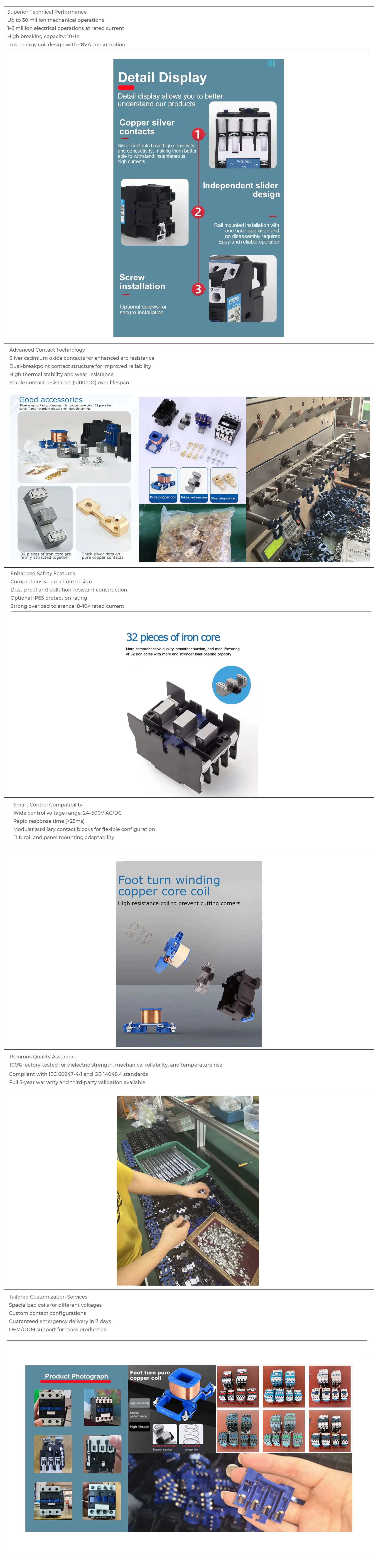

Kapag ang AC contactor ay naka-on, ang internal coil ay bubuo ng magnetic field, na nagiging sanhi ng gumagalaw na iron core at ang stationary iron core na magkadikit, na nagtutulak sa contact system na makipag-ugnayan sa stationary contact at pagsasagawa ng circuit. Pagkatapos mawalan ng power ang coil, mawawala ang suction force, at itutulak pataas ng reset spring ang gumagalaw na core ng bakal, na magiging dahilan upang maghiwalay ang mga contact at masira ang circuit.
-

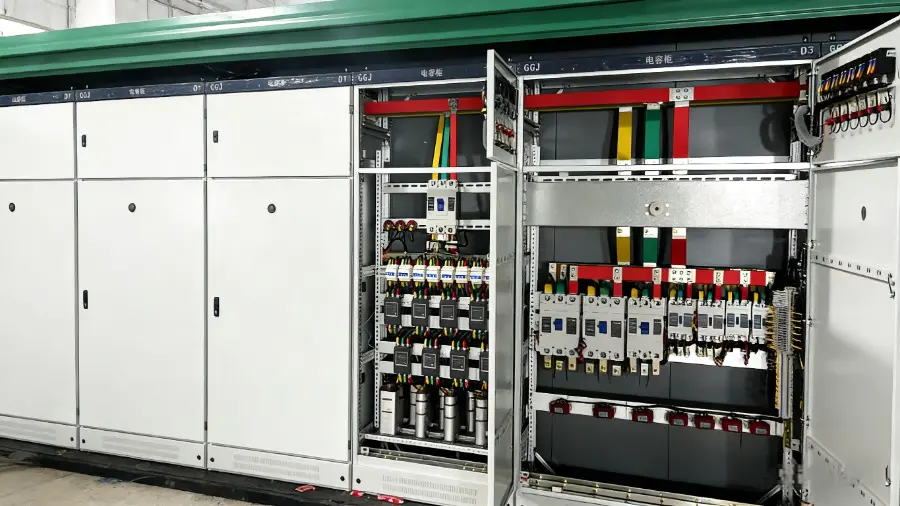

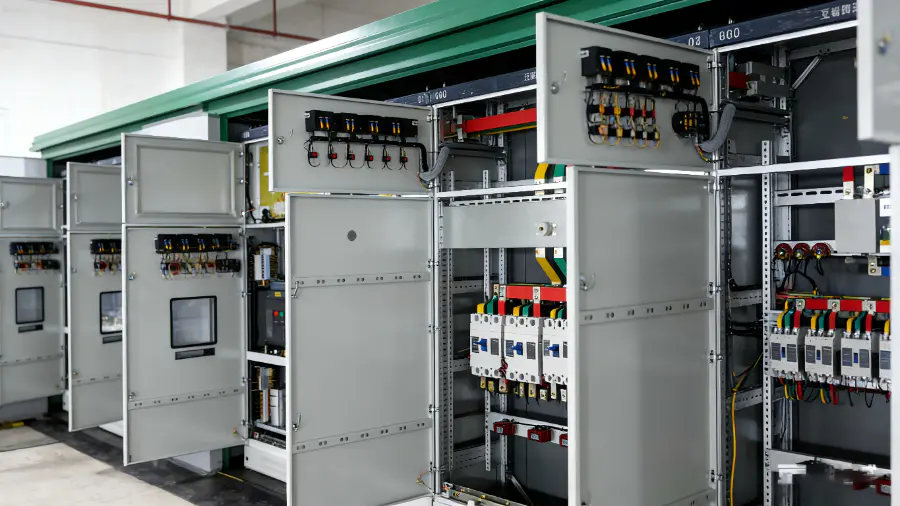

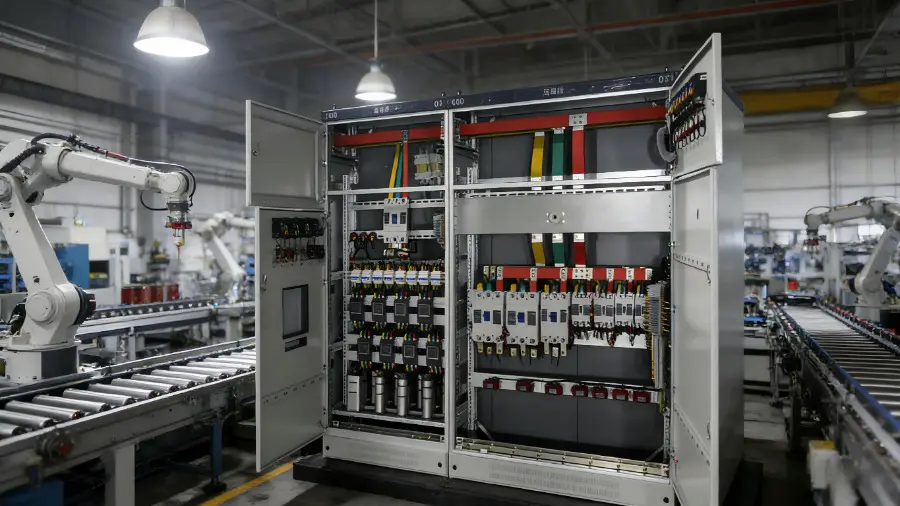

Project Cases
-

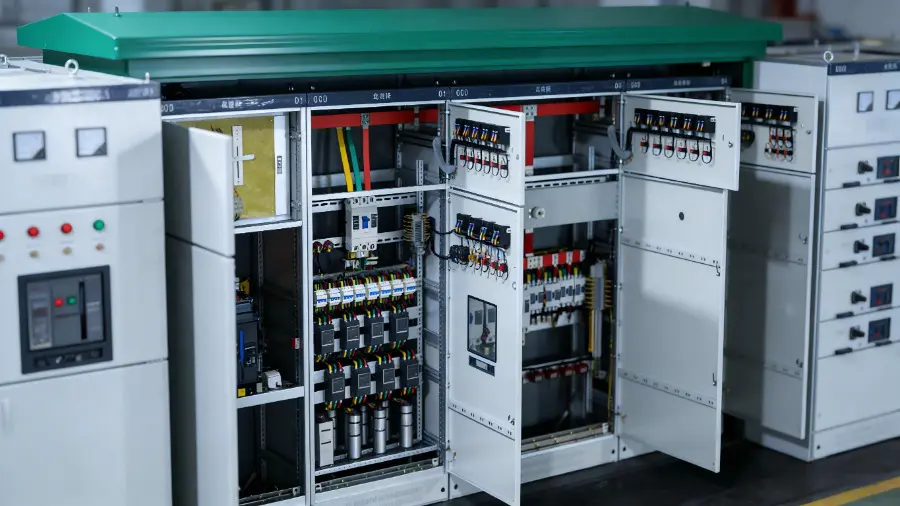

Project Cases
-

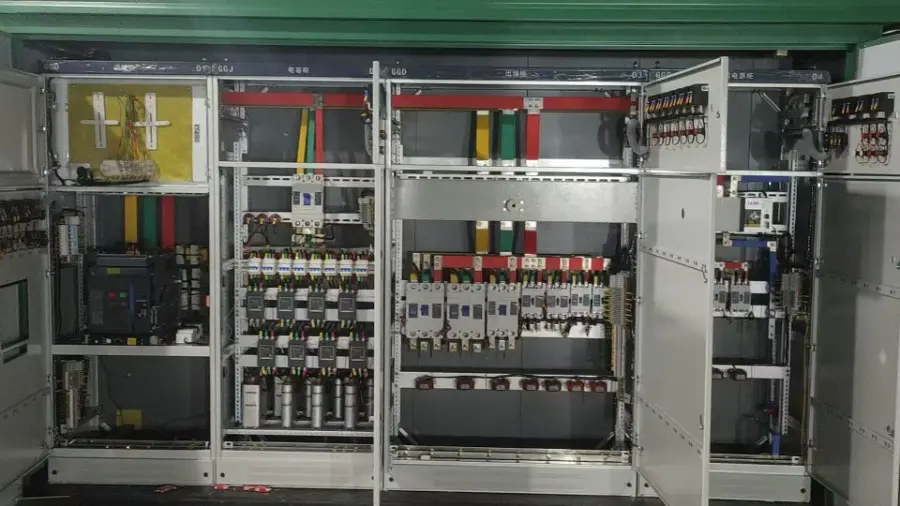

Project Cases
-
Project Cases
-
Project Cases

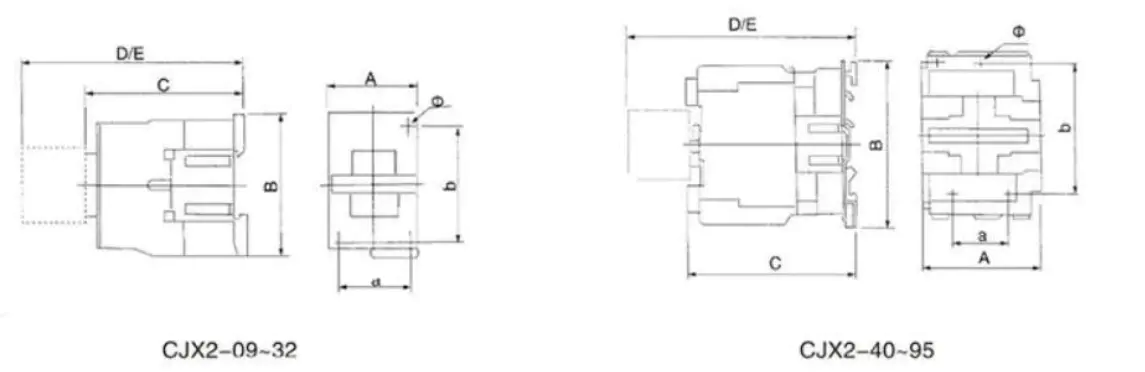

| MODELO | A | B | C | D | E | a | b | Φ |
| D09~12 | 47 | 76 | 82 | 11 | 133 | 34/35 | 50/60 | 4.5 |
| D18 | 47 | 76 | 87 | 118 | 138 | 34/35 | 50/60 | 4.5 |
| D25 | 57 | 86 | 95 | 126 | 146 | 40 | 48 | 4.5 |
| D32 | 57 | 86 | 100 | 131 | 151 | 40 | 48 | 4.5 |
| D40~65 | 77 | 129 | 116 | 145 | 165 | 40 | 100/110 | 6.5 |
| D80~95 | 87 | 129 | 127 | 175 | 195 | 40 | 100/110 | 6.5 |
| Uri ng Modeloo | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 | |
| Na-rate ang kasalukuyang gumagana (A) | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | |
| Tatlong-phase na motor AC－3 antas (kw) | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | - | - | |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | - | - | |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 | |
| RatedheatingcurrentIth(A) | 20 | 20 | 30 | 32 | 40 | 50 | 60 | 80 | 125 | 125 | |
| Haba ng kuryente(10000 cycle) | AC3 | 100 | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 60 |
| AC4 | 20 | 20 | 20 | 20 | 20 | 15 | 15 | 15 | 10 | 10 | |
| Mechanical lifespan(10000 cycle) | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 600 | 600 | |
| Modelo ng contact | 3P NO | 3P NC NO | |||||||||
| Model | Rated kasalukuyang (A) | Pangunahing contact | Pantulong na contact | Single-phase load power (kW) | Three-phase load power (kW) |
| CJX2-0910 | 9A | 3HINDI | 1HINDI | 1.8KW | 3.5KW |
| CJX2-0901 | 9A | 3HINDI | 1NC | 1.8KW | 3.5KW |
| CJX2-1210 | 12A | 3HINDI | 1HINDI | 2.5KW | 5KW |
| CJX2-1201 | 12A | 3HINDI | 1NC | 2.5KW | 5KW |
| CJX2-1810 | 18A | 3HINDI | 1HINDI | 3.5KW | 7.5KW |
| CJX2-1801 | 18A | 3HINDI | 1NC | 3.5KW | 7.5KW |
| CJX2-2510 | 25A | 3HINDI | 1HINDI | 5KW | 8.5KW |
| CJX2-2501 | 25A | 3HINDI | 1NC | 5KW | 8.5KW |
| CJX2-3210 | 32A | 3HINDI | 1HINDI | 6KW | 12KW |
| CJX2-3201 | 32A | 3HINDI | 1NC | 6KW | 12KW |
| CJX2-4011 | 40A | 3HINDI | 1HINDI 1NC | 8KW | 18.5KW |
| CJX2-5011 | 50A | 3HINDI | 1HINDI 1NC | 10KW | 24KW |
| CJX2-6511 | 65A | 3HINDI | 1HINDI 1NC | 12.5KW | 28KW |
| CJX2-8011 | 80A | 3HINDI | 1HINDI 1NC | 15.5KW | 37KW |
| CJX2-9511 | 95A | 3HINDI | 1HINDI 1NC | 18.5KW | 44KW |
